Sun Umbrellas - Strong Wind & Weather Resistant
Typ TS, TXS, TX

Our Strong Wind umbrella is made especially to withstand the elements in exposed locations such as coastal areas, roof-top terraces and in high altitude regions. It’s a Titan and solid as a rock. Therefore gastronomy prefers this type. Designed to shade large areas this strong wind umbrella is a reliable partner even in challenging weather conditions.

Designed to defy even speedy winds this umbrella was tested in the wind tunnel and prooved its capability to withstand strong winds up to102 km/h because of its reinforced arms, exceptionally stable hinge points and an extremely strong mast. Depending on your individual requirements umbrellas of Type TS, TXS and TX can be installed using concrete foundation with in-ground sleeves or base plates.

Solid as a rock!

Sun umbrellas Made in Germany

Sun umbrellas made by Uhlmann are produced in our manufactory with great diligence and are all hand-made. At our German location we run our entire printing and also our winter services.

This way you can rely on having the guarantee of receiving best quality.

Umbrellas Type TS, TXS, TX - Gallery

Large green windproof sunshade on wooden terrace with lake view

Roof terrace with white and red windproof sun umbrellas

[Translate to Englisch:] Gastronomie-Außenbereich mit gelben Sonnenschirmen sturmfest

Red windproof sun umbrella over plants on garden terrace

Golfer in front of a building with sturdy sun umbrellas on a golf course

White sports car under a white windproof sun umbrella in a foggy hall

Sturdy white sun umbrellas on a wooden terrace at the airport

Sturdy sun umbrella on a terrace with houses and a playground in the garden

Brown windproof sun umbrella over outdoor sofa on terrace

Umbrellas Type TS, TXS, TX - Gallery

Shapes & Sizes

Square
Size: From 3 m x 3 m to 6 m x 6 m
Shaded area: From 9 m² to 36 m²

Rectangle
Size: From 4 m x 3 m to 7,5 m to 4 m
Shaded area: From 12 m² to 35 m²

Round
Size: From 3 m to 8 m
Shaded area: From 7 m² to 50 m²

View PDF Data sheet

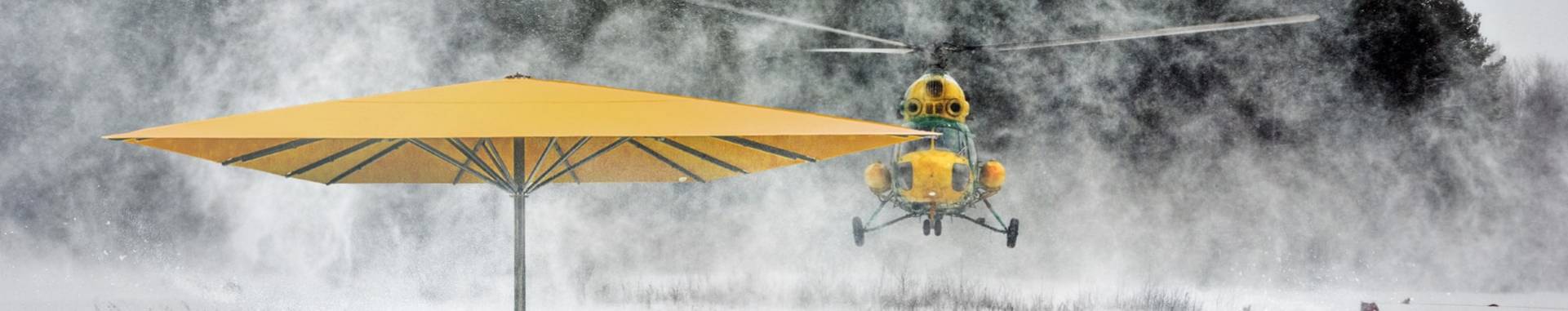

Umbrella tested in the wind tunnel

To guarantee our clients highest stability and reliable wind resistance these umbrellas were tested in the wind tunnel. While being tested in the wind tunnel the respective umbrella was fixed to the ground with a screw anchored base plate.

Strong Wind umbrellas are available as follows:

Typ TS 80 mm maximum gust of wind pressure up to 102 km/h
Typ TXS 110 mm maximum gust of wind pressure up to 102 km/h
Typ TX 110 mm maximum gust of wind pressure up to 70 km/h

Award: Uhlmann strong wind umbrella, wind tunnel tested up to 102 km/h

Sun umbrellas tested in windchannel - Video

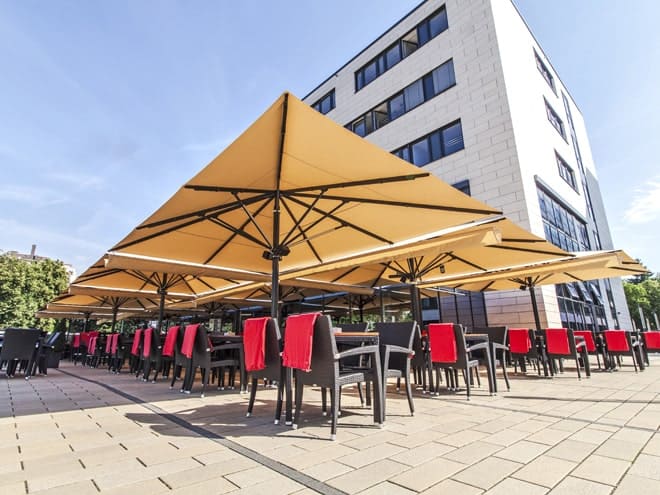

Strong Wind umbrellas designed for gastronomy

Outdoor areas in gastronomy in particular need Strong Wind umbrellas to ensure maximum protection of all guests when gusty or speedy winds come up. We therefore strongly recommend to choose sun umbrellas with an intense sun and UV protection and additionally tested for wind stability – like Strong Wind umbrellas of Type TS, TXS and TX. Your guests will enjoy being in your place knowing that they have optimum protection from weather influences.

Large, light-colored sun umbrellas protect the outdoor dining area

Restaurant terrace with many sun umbrellas in front of a building

Outdoor dining area with many sun umbrellas in front of a building

Specifications Type TS, TXS and TX

Sizes:	From Ø 3,0 m to Ø 8,0 m outer diameter
Shaded area:	From 7 m² to 50 m²
Mast:	TS = Ø 80 mm; TXS, TX = 110 mm
Mast Thickness:	From 4 mm to 5 mm

Arms:	45 x 25 x 2 mm to 56 x 31 x 2,5 mm
Operation:	Crank handle / crank pin
Colors:	See "Fabrics & Colors"
Accessories:	Optional

View PDF Data sheet

FABRICS AND COLORS

Fabrics and colors for your individual design

More

ACCESSORIES

Matching accessories for each umbrella

Interesting facts about our Strong Wind umbrellla

Our Strong Wind umbrelllas are tested in the wind tunnel up to wind speeds of 102 km/h and succeeded! In weather forecasts wind speeds from 94 km/h to 102 km/h (51 to 55 knots) are counted as heavy storm. Uhlmann's Strong Wind Umbrellas are available in more than 20 different sizes and provide a tremendous high stability and durability.

✓ Tested in the wind tunnel
✓ Reinforced construction
✓ Aerodynamically efficient design
✓ Perfect for windy locations
✓ Highest quality and wind-resistance
✓ Made in Germany
